AM80

Amphibious Excavator

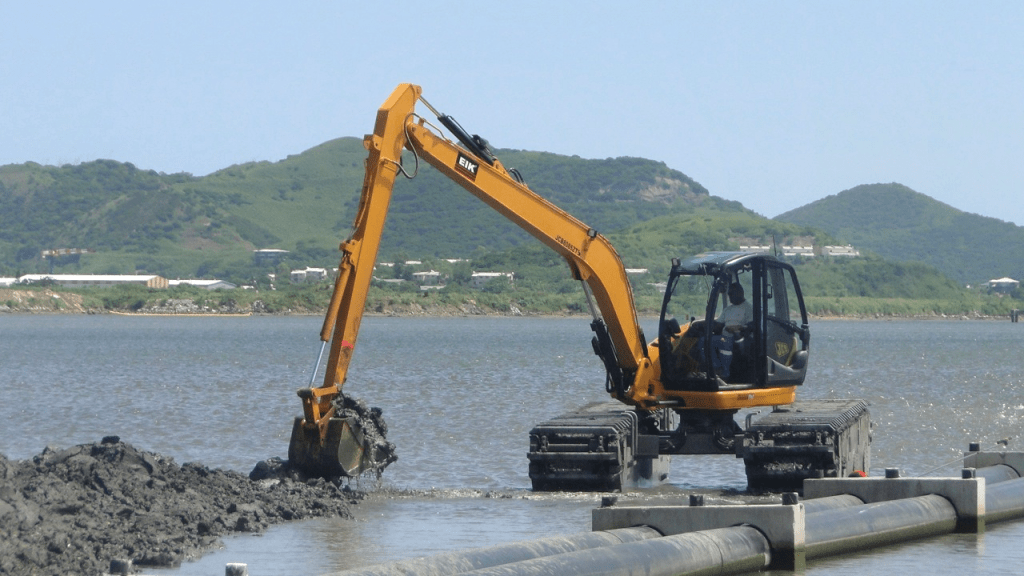

The EIK AM80 is an agile amphibious excavator designed for efficient operation in wet, soft, and unstable terrains. Its high-buoyancy pontoons and low-ground-pressure design provide exceptional stability in shallow water, marshes, and wetlands. It is ideal for dredging, environmental restoration, and waterway maintenance. Additionally, it offers ease of transportation due to its compact footprint when the undercarriage is retracted, facilitating quick and simple relocation between sites.

Operating Weight

7-8 tons
6,300-7,300 kg

Max Reach

30 ft
9.14 m

Overall Width

11’ 1” / 13’ 9”
3.38 m / 4.19 m

AM80 OVERVIEW

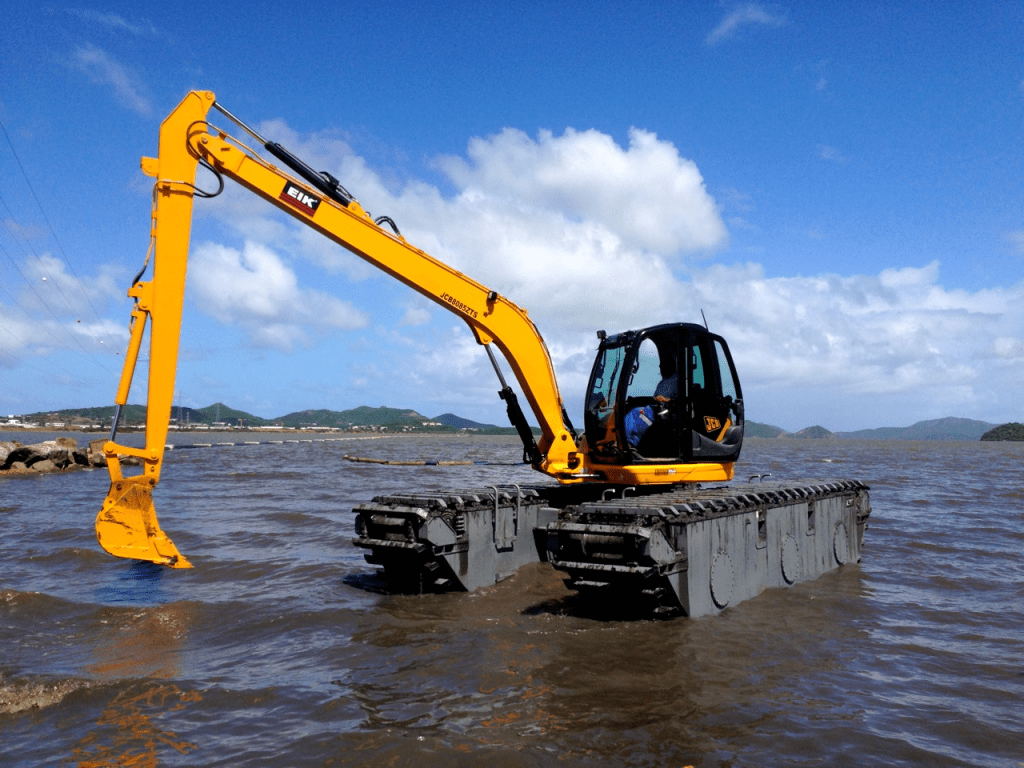

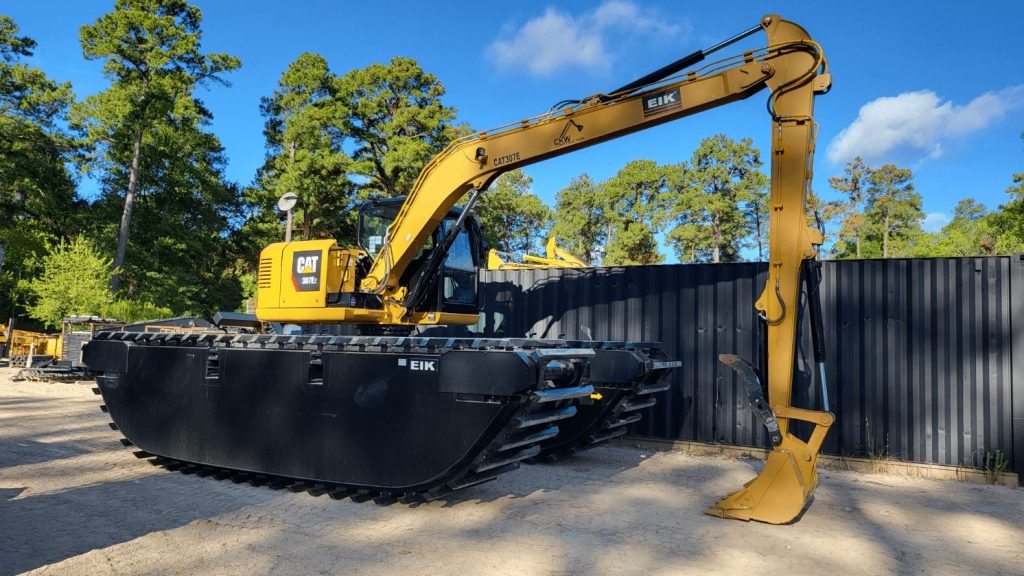

The AM80 amphibious excavator is uniquely engineered to operate effectively in marshlands, swampy regions, and soft terrains. It is fully self-propelled, enabling access to virtually all types of terrain with minimal need for additional transportation or lifting equipment. An added safety feature allows it to float on water. When equipped with a 30-foot long reach front, it can access areas that were previously unreachable. The excavator’s hydraulic extendability allows for easy preparation for transport and smooth navigation through tight workspaces on the job site. Powered by our innovative “multi-synchronous hydraulic motor direct drive” system, this high-performance amphibious excavator remains at the cutting edge of amphibious construction technology.

FEATURES

Multi-Synchronous Direct Drive: Our patented drive motor system provides superior tracking capability, making the machine virtually undeterred in any terrain. Hydraulic extendable: Powered retraction and expansion from within the cab, easy preparation for transportation and travel through tight work areas on the job site. Service Manholes: Service manholes on each pontoon for easy maintenance and field servicing.

	AM80	AM140	AM200	AM250
DIMENSIONS
Max Track Length	22’ 10” ft	30’ 6” ft	31’ 7” ft	31’ 7” ft
Track Length On Ground	10’ 6” ft	14’ 1” ft	14’ 9” ft	14’ 9” ft
Rear Upper Structure Length	5’ 9” ft	7’ ft	9’ 4” ft	9’ 10” ft
Overall Length	30’ 4” ft	40’ 2” ft	44’ 5” ft	47’ 3” ft
Height of Boom	9’ 6” ft	9’ 8” ft	11’ 5” ft	11’ 8” ft
Counterweight Clearance	5’ 8” ft	6’ ft	7’ 1” ft	7’ 3” ft
Overall Width	11’ 1”/13’ 9” ft	13’ 2”/ 16’ 10” ft	14’ 9”/19’ 7” ft	17’ 1”/21’ 9” ft
Undercarriage Width Min/Max	11’/13’ 8” ft	12’ 11”/16’ 6” ft	14’ 8”/19’ 6” ft	17’/21’ 8”ft
Track Gauge Min/Max	6’ 9”/9’ 5”ft	8’ 2” /11’ 9” ft	9’ 4”/14’ 2”ft	10’ 8”/15’ 5” ft
Track Cleat Width	4’ 3” ft	4’ 9” ft	5’ 4” ft	6’ 4” ft
Min Ground Clearance	3’ 9” ft	3’ 8” ft	4’ 3” ft	4’ 3” ft
Track Height	5’ 5” ft	5’ 7” ft	6’ 8” ft	6’ 8” ft
Overall Cab Height	12’ ft	12’ 4” ft	13’ 5” ft	13’ 6” ft
Upper Structure Overall Width	7’ 5” ft	8’ ft	8’ 4” ft	9’ 4” ft
Max. Cutting Height	26’ 1” ft	37’ 5” ft	40’ 8” ft	44’ 11” ft
Max. Loading Height	20’ 8” ft	30’ 6” ft	34’ 5” ft	37’ 5” ft
Recommended Outreach	26’ 3” ft	39’ 4” ft	45’ 11” ft	49’ 3” ft
Max. Digging Depth from Front	12’ 6” ft	23’ 11” ft	29’ 2” ft	30’ 10” ft
Max. Digging Depth from Side	11’ 2” ft	21’ 4” ft	23’ 7” ft	23’ 7” ft
