AM140

Amphibious Excavator

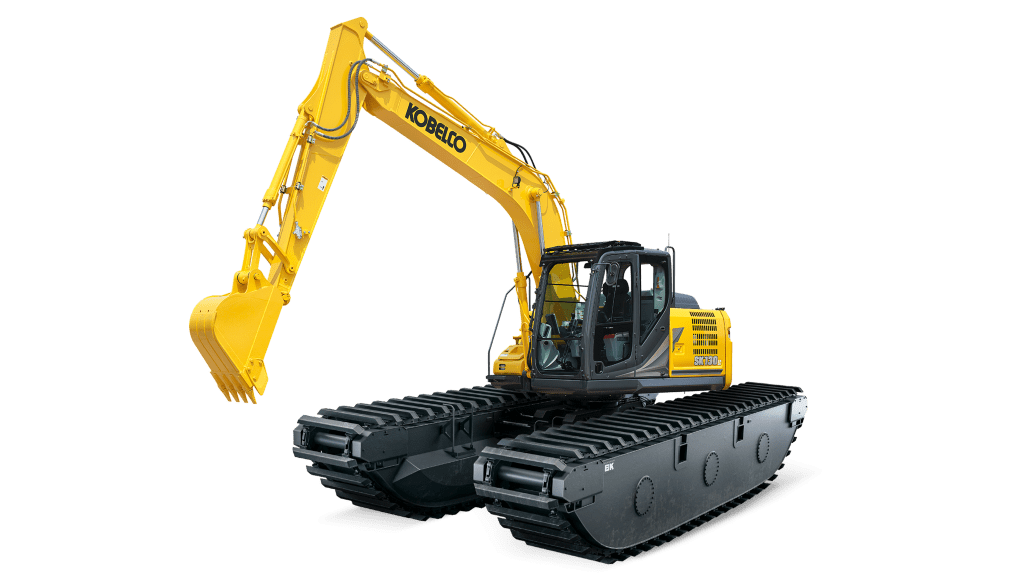

The EIK AM140 amphbious excavator features a higher lifting capacity and a broader operational range with its 4′ 10″ float capacity, making it well-suited for larger and more complex aquatic and terrestrial tasks. Its reinforced pontoons, smooth maneuverability, and precise hydraulic control make it ideal for dredging, wetlands restoration, and other challenging projects such as riverbank reinforcement, shoreline development, and aquatic infrastructure construction.

Operating Weight

12-14 tons
10,900-12,700 kg

Max Reach

40 ft
12.19 m

Overall Width

11’ 6” / 15’ 1”
3.51 m / 4.60 m

AM140 OVERVIEW

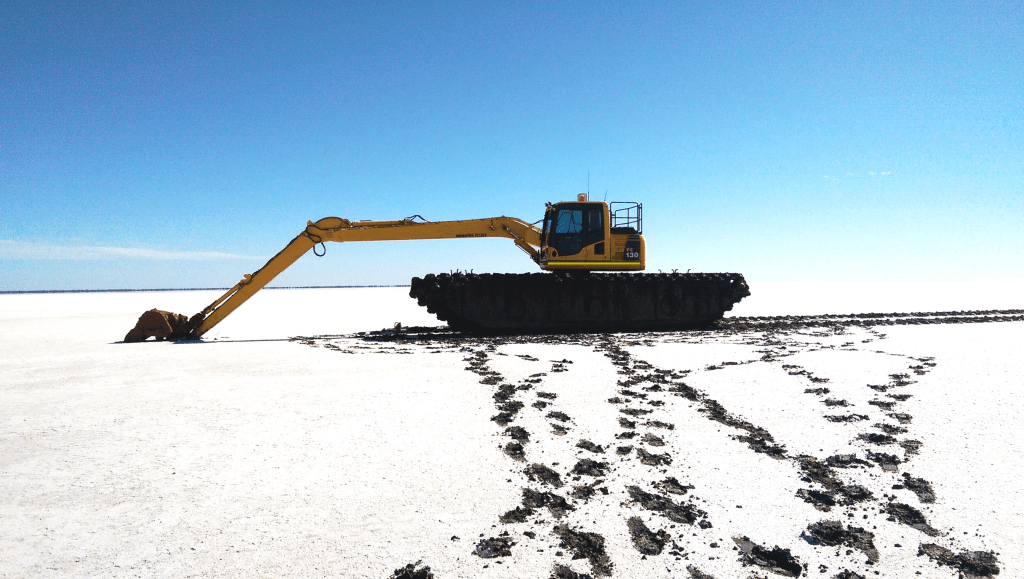

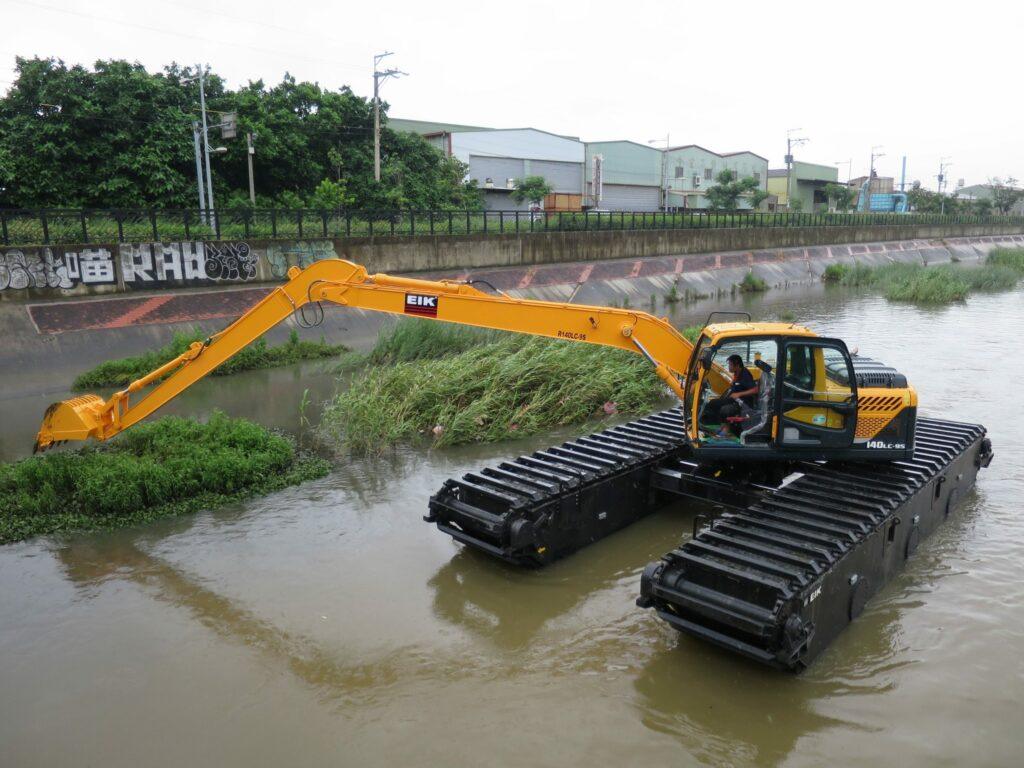

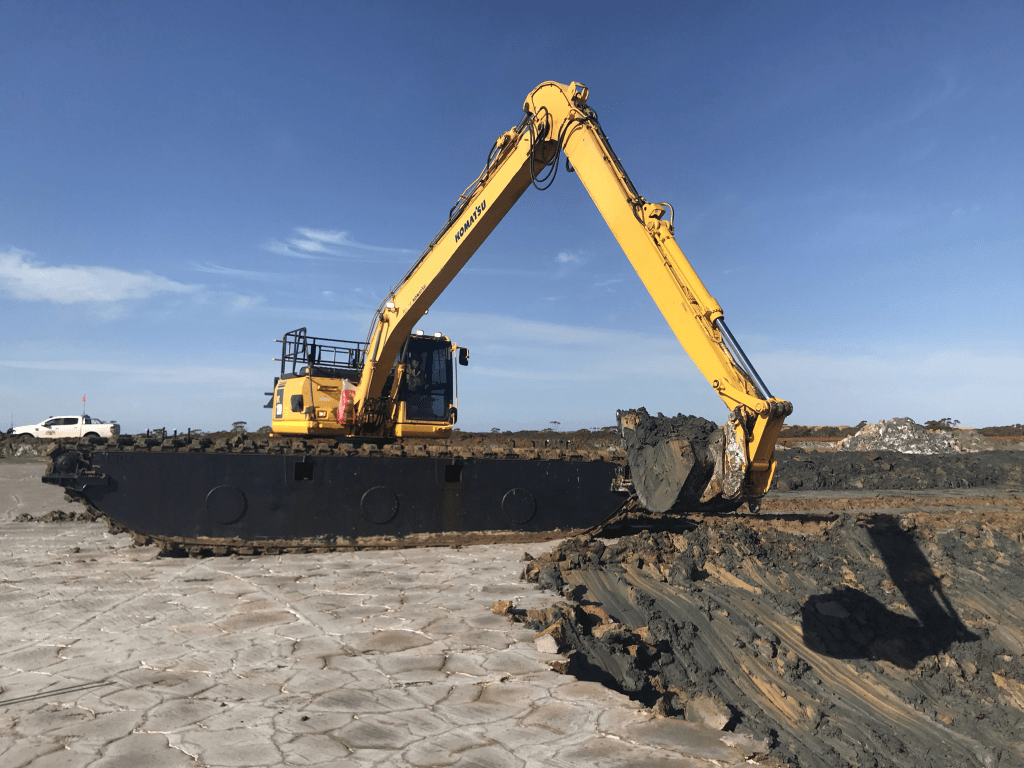

The AM140 amphibious excavator/marsh buggy is specifically engineered to navigate marshy, swampy, and soft terrains with ease. Fully self-propelled, it can access virtually any type of terrain with minimal need for supporting transportation or hoisting equipment. An additional safety feature allows it to float on water. When equipped with a 40-foot long reach front, it can reach areas that were previously inaccessible. The AM140's hydraulic extendability facilitates quick preparation for transport and enables smooth movement through tight workspaces on the job site. Powered by our innovative “multi-synchronous hydraulic motor direct drive” system, this high-performance amphibious excavator remains at the forefront of design technology. Its versatility is further enhanced when used with our wide range of attachments, and we offer in-house expertise for designing custom attachments to meet specific project needs.

FEATURES

Multi-Synchronous Direct Drive: Our patented drive motor system provides superior tracking capability, making the machine virtually undeterred in any terrain. Hydraulic extendable: Powered retraction and expansion from within the cab, easy preparation for transportation and travel through tight work areas on the job site. Service Manholes: Service manholes on each pontoon for easy maintenance and field servicing.

	AM80	AM140	AM200	AM250
DIMENSIONS
Max Track Length	22’ 10” ft	30’ 6” ft	31’ 7” ft	31’ 7” ft
Track Length On Ground	10’ 6” ft	14’ 1” ft	14’ 9” ft	14’ 9” ft
Rear Upper Structure Length	5’ 9” ft	7’ ft	9’ 4” ft	9’ 10” ft
Overall Length	30’ 4” ft	40’ 2” ft	44’ 5” ft	47’ 3” ft
Height of Boom	9’ 6” ft	9’ 8” ft	11’ 5” ft	11’ 8” ft
Counterweight Clearance	5’ 8” ft	6’ ft	7’ 1” ft	7’ 3” ft
Overall Width	11’ 1”/13’ 9” ft	13’ 2”/ 16’ 10” ft	14’ 9”/19’ 7” ft	17’ 1”/21’ 9” ft
Undercarriage Width Min/Max	11’/13’ 8” ft	12’ 11”/16’ 6” ft	14’ 8”/19’ 6” ft	17’/21’ 8”ft
Track Gauge Min/Max	6’ 9”/9’ 5”ft	8’ 2” /11’ 9” ft	9’ 4”/14’ 2”ft	10’ 8”/15’ 5” ft
Track Cleat Width	4’ 3” ft	4’ 9” ft	5’ 4” ft	6’ 4” ft
Min Ground Clearance	3’ 9” ft	3’ 8” ft	4’ 3” ft	4’ 3” ft
Track Height	5’ 5” ft	5’ 7” ft	6’ 8” ft	6’ 8” ft
Overall Cab Height	12’ ft	12’ 4” ft	13’ 5” ft	13’ 6” ft
Upper Structure Overall Width	7’ 5” ft	8’ ft	8’ 4” ft	9’ 4” ft
Max. Cutting Height	26’ 1” ft	37’ 5” ft	40’ 8” ft	44’ 11” ft
Max. Loading Height	20’ 8” ft	30’ 6” ft	34’ 5” ft	37’ 5” ft
Recommended Outreach	26’ 3” ft	39’ 4” ft	45’ 11” ft	49’ 3” ft
Max. Digging Depth from Front	12’ 6” ft	23’ 11” ft	29’ 2” ft	30’ 10” ft
Max. Digging Depth from Side	11’ 2” ft	21’ 4” ft	23’ 7” ft	23’ 7” ft
